Ubiquiti UBB

60 GHz Gigabit+ Wireless Bridge Kit

• Low-Interference 60 GHz Radio Band
• 5 GHz Radio for Backup
• Pre-Paired Radios for Quick Setup Using UniFi App

UniFi Building-to-Building Bridge, model UBB, is a 60 GHz/5 GHz wireless bridge with 1.7+ Gbps of throughput. It's the ideal solution for short-range, high-throughput connectivity. As a pack of two radios, it contains everything you need to get up and running within minutes. Enjoy simple, easy-to-use gigabit connectivity anywhere.

Overview

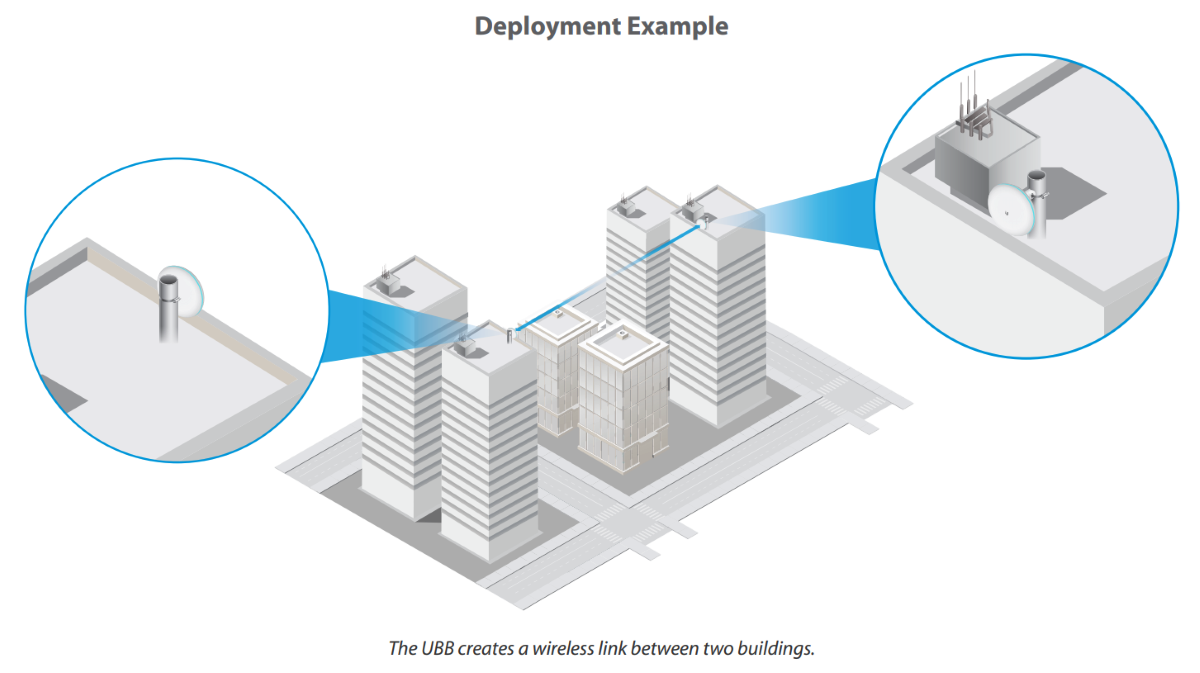

The UniFi Building-to-Building Bridge, model UBB, is the ideal solution for high-throughput connectivity with a range of up to 500 m. Integration with the UniFi Controller makes bridging two networks seamless.
Comprised of two pre-paired endpoint devices, the UBB delivers a Point-to-Point (PtP) link – up to 1.7+ Gbps – using 802.11ad technology on the low-interference 60 GHz radio band. For backup, a 5 GHz radio using 802.11ac technology is available.

60 GHz Operating Frequency
The 60 GHz band attenuates quickly due to atmospheric absorption. When a 60 GHz radio – such as the UBB – uses a highly directional antenna, inteference from other directions is also attenuated. The 60 GHz band thus offers extremely high transmission capacity as a wireless wire.

Wireless Link Redundancy
60 GHz is highly directional and any obstacle in the line of sight – even rain – can drop signal levels. To maintain connectivity, the UBB can fail over to the 5 GHz radio. The 5 GHz radio band propagates better and uses radio wave reflections and refractions more effectively, although it offers lower maximum throughput.

Paired Configuration
Setup is quick and easy: the UBB radios are pre-paired out of the box so you can use the UniFi app for simultaneous adoption. The UniFi Controller software enables intuitive management of individual UniFi devices and site-wide deployments.

Sleek Industrial Design
The UBB is designed with a compact form factor for discreet integration into any environment.

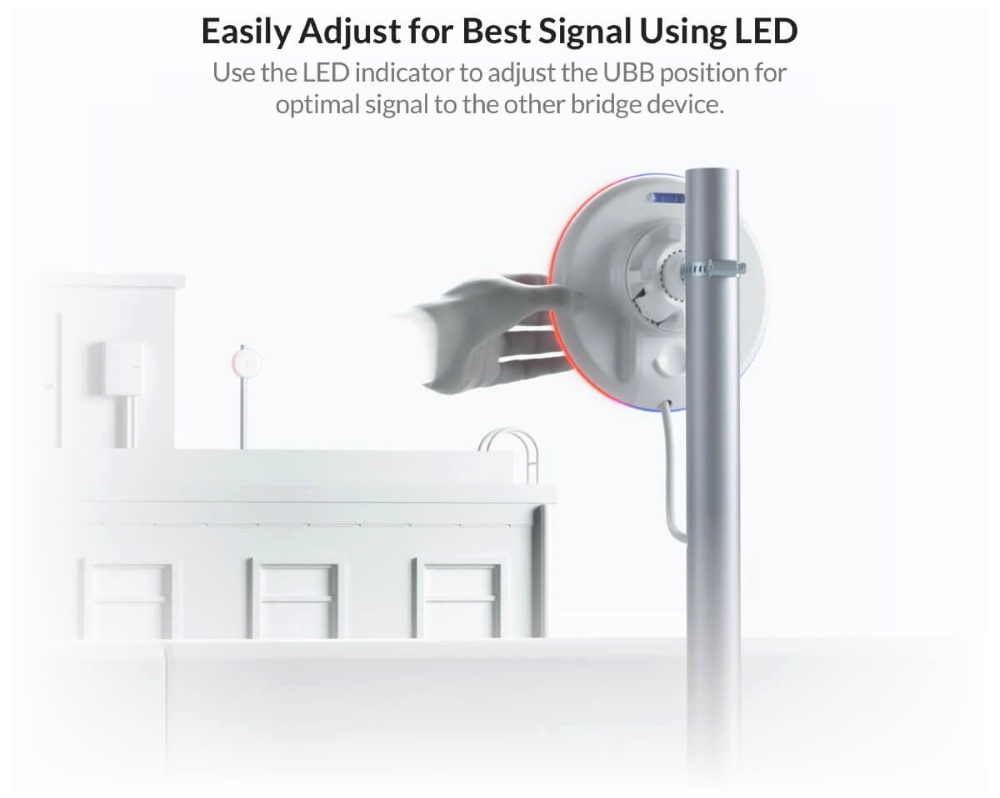

Convenient Alignment
The UBB pivots on its ball joint 3-axis mount for easy aiming.

Mounting Versatility
No fasteners are required for pole-mounting, and a single wall fastener (not included) is required for wall-mounting. A wall mount kit, model NBE-WMK, is available as an optional accessory to enhance stability.

Package Contents:
UniFi Building Bridge (x2)
Ball joint mount (x2)
Lock ring (x2)
Metal strap (x2)
Gigabit PoE (48 V, 0.32 A) with mounting bracket (x2)
Power cord (x2)

SPECIFICATIONS

Frequency band: 60 GHz (5 GHz backup)

Wi-Fi Standard: 802.11ad

Radio rate: 1.7+ Gbps

Ports: 1x GbE RJ-45

PoE support: yes, 802.3af or passive 48V

Dimensions: 140 x 140 x 90 mm
